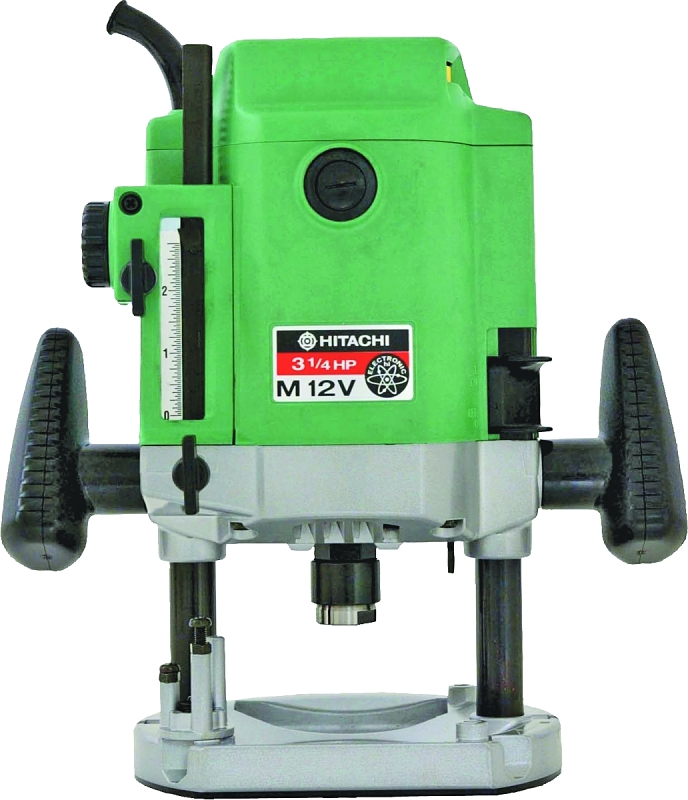

Hitachi M12VE Router, 15 A, 8000 to 22,000 rpm Load Speed, 2-9/16 in Max Stroke

Hitachi

Hitachi M12VE Router, 15 A, 8000 to 22,000 rpm Load Speed, 2-9/16 in Max Stroke

Hitachi M12VE Router, 15 A, 8000 to 22,000 rpm Load Speed, 2-9/16 in Max Stroke
  • Amp Rating: 15 A
  • Base Dimensions: 9-1/4 to 11-13/16 in H
  • Control Type: Slide
  • Handle Type: Angle Adjustable
  • Includes: 1/4 Collet Chuck 23 mm Wrench Straight Guide Template Guide Template Guide Adapter
  • Model #: M12VE
  • UPC #: 717709023482
  • SKU: 7571714

Your shopping list will be used for pickup in-store

Product Details

Heavy-duty power for fast, clean cuts. Multi-slide scale and index system for accurate plunge depth adjustment. Variable electronic speed control with soft start switch prevents torque kick-back. Three position adjustable handles provides more comfort and control during use. Lightweight design facilitates maneuverability and ease of use. Optimal for fine milling applications. Exclusive accessory pack comes standard. Standard equipment is straight guide, bar holder, feed screw, 3 wing bolts. 11/16 in template guide, wrench, straight bit, chuck sleeve, template guide adapter, 2 lock springs. Rated at 15 A, 3.25 hp, maximum collet capacity of 1/2 in, no-load speed of 8000 to 20,000 rpm, plunge stroke of 2-7/16 in, spindle lock, base dimension of 7-3/32 in x 2-3/4 in.

Key Features

  • Soft start with easy to operate sliding switch reduces torque and makes start-up simple
  • Powerful 3-1/4 peak hp motor produces up to 22,000 rpm
  • Lightweight and compact at just 117 lb and a minimum height of 9-1/4 in for easy maneuverability
  • Ideal angle adjustable handles ensure great control

Item Specifications

Amp Rating15 A
Base Dimensions9-1/4 to 11-13/16 in H
Control TypeSlide
Handle TypeAngle Adjustable
Includes1/4 Collet Chuck 23 mm Wrench Straight Guide Template Guide Template Guide Adapter
Load Speed8000 to 22000 rpm
Maximum Stroke2-9/16 in
MORE DETAILS:
  • Warranty: 5 Year Limited
