Simpson Strong-Tie ABA Series ABA66Z Post Base, 6 x 6 in Post, 14 ga, Steel, ZMAX, 1/PK

Simpson Strong-Tie

Finish: ZMAX
Length: 5-3/8
Material: Steel
Material Gauge: 14 ga
Post Size: 6 x 6 in
Model #: ABA66Z
UPC #: 044315671906
SKU: 7832751

Your shopping list will be used for pickup in-store

Product Details

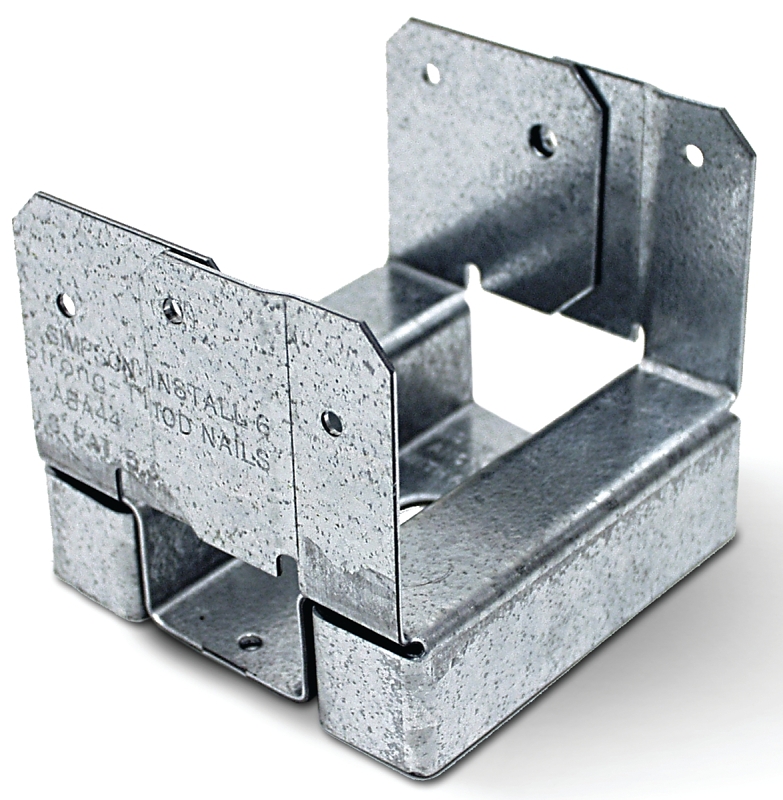

The ABA is designed to attach wooden posts to existing concrete. The built-in 1 in stand-off of this adjustable post-base helps to prevent rot at the end of the post. The ABA has a slotted anchor hole in the base for adjustability and attaches to the post with nails or Strong-Drive® SD Connector screws. This versatile post-base makes a cost-effective option for securing a post to the foundation. This post-base is available in model sizes for double 2X, 4 x 4, 4 x 6 and 6 x 6 lumber, both nominal and rough. The new double 2X size can be used for installing a structural post consisting of two 2 x 4 studs nailed together as well as for securing double 2X beams to a footing for ground-level decks.

Key Features

The slot in the base enables flexibility around the anchor bolt, making precise post placement easier
1 in stand-off design meets code requirements for structural posts installed in basements or exposed to weather or water splash
Increased uplift loads for earthquake or wind loading
ZMAX® galvanization offers extra corrosion resistance for exterior and treated-wood applications

Item Specifications

Finish	ZMAX
Length	5-3/8
Material	Steel
Material Gauge	14 ga

Post Size	6 x 6 in
Weight Capacity	10245 lb Down DF/SP 850 lb Uplift
Width	5-1/2
