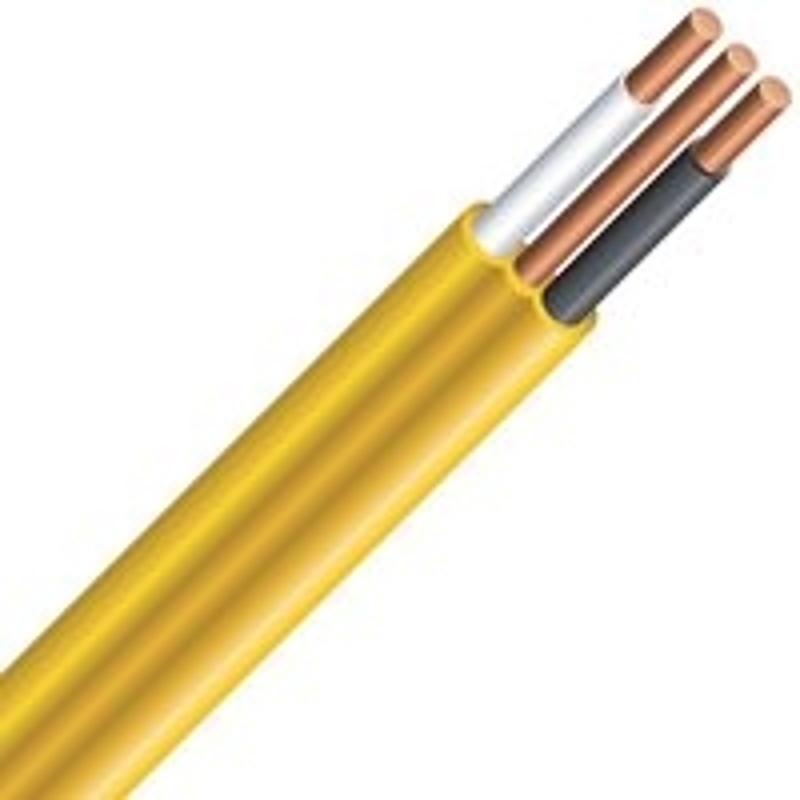

Romex 47175515 Series Building Wire, Yellow Sheath, 12 AWG Wire, 2-Conductor, 150 m L, Copper Conductor, PVC Insulation

Romex

Romex 47175515 Series Building Wire, Yellow Sheath, 12 AWG Wire, 2-Conductor, 150 m L, Copper Conductor, PVC Insulation

Romex 47175515 Series Building Wire, Yellow Sheath, 12 AWG Wire, 2-Conductor, 150 m L, Copper Conductor, PVC Insulation
  • Conductor Insulation: PVC
  • Conductor Material: Copper
  • Current Rating: 20 A
  • Length: 150
  • Number of Conductors: 2
  • Model #: 47175515
  • UPC #: 032886001499
  • SKU: 6594329

Your shopping list will be used for pickup in-store

Product Details

Romex Building Wire, NMD90, Wire Size: 12 AWG, 150 m L, Number of Conductors: 2, Strands per Conductor: 1, Conductor Material: Copper, Conductor Insulation: PVC, Stranded/Solid: Stranded, Sheath Material: Nylon, Sheath Color: Yellow, 300 V, 20 A, Operating Temperature: 90 deg C

Key Features

  • Non-metallic sheathed cable
  • SIM Jacket™ construction designed for easier pulling and stripping
  • Reduced burn-thru with effective tear-resistant

Item Specifications

Conductor InsulationPVC
Conductor MaterialCopper
Current Rating20 A
Length150
Number of Conductors2
Operating Temperature90 deg C
Sheath ColorYellow
Sheath MaterialNylon
Stranded/SolidStranded
Strands per Conductor1
TypeNMD90
Voltage Rating300 V
Wire Size12 AWG
MORE DETAILS:
  • Application: For exposed work in dry locations or concealed work in dry or damp locations, underground installations
