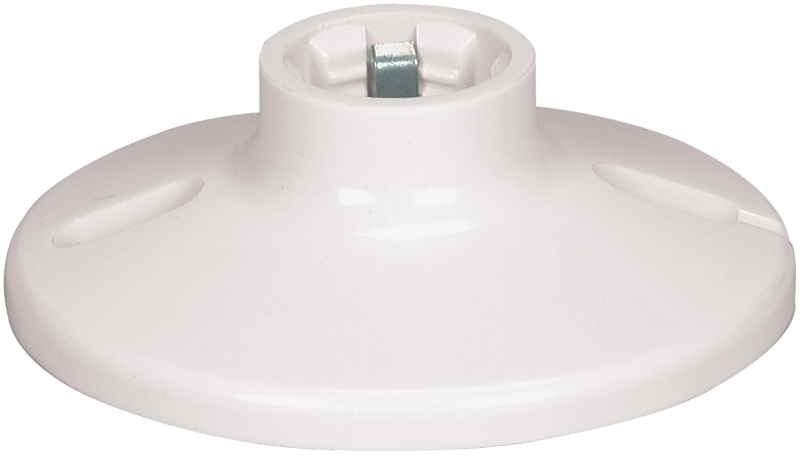

Eaton Wiring Devices S1174W-SP-L Lamp Holder, 250 V, 660 W, Thermoset Plastic Housing Material, White

Eaton Wiring Devices

Eaton Wiring Devices S1174W-SP-L Lamp Holder, 250 V, 660 W, Thermoset Plastic Housing Material, White

Eaton Wiring Devices S1174W-SP-L Lamp Holder, 250 V, 660 W, Thermoset Plastic Housing Material, White
  • Base Type: Medium
  • Color: White
  • Dimensions: 1.417 in L x 4.578 in W x 4.578 in H
  • Housing Material: Thermoset Plastic
  • Mounting Type: Ceiling
  • Model #: S1174W-SP-L
  • UPC #: 032664482403
  • SKU: 9235011

Your shopping list will be used for pickup in-store

Product Details

Eaton Wiring Devices Lamp Holder, 1-Piece, Base Type: Medium, 250 V, Wattage Rating: 660 W, Wire Size: 14 to 10 AWG, Housing Material: Thermoset Plastic, Ceiling Mounting, White, Wiring Type: Top, Dimensions: 1.417 in L x 4.578 in W x 4.578 in H

Key Features

  • Mounts on 4 in (1016 mm) outlet boxes with breakout for 3-1/4 in (825 mm) box mounting
  • Leads are 6 in (1524 mm) 221 deg F (105 deg C) insulated stranded 16 AWG, stripped 3/4 in (19 mm)
  • Top wire versions have terminal screws backed out ready for wiring without removing interior
  • Push wire terminals are top wired with two push-in terminals and two screw terminals for continuous wiring
  • Pull chain devices include ball chain, 3 ft (09 m) of cord, connector and end bell
  • Porcelain models made of high-strength insulator porcelain - pull chain versions feature removable interiors
  • Plastic models made with high-temperature thermoset plastic to reduce breakage

Item Specifications

Base TypeMedium
ColorWhite
Dimensions1.417 in L x 4.578 in W x 4.578 in H
Housing MaterialThermoset Plastic
Mounting TypeCeiling
Type1-Piece
Voltage Rating250 V
Wattage Rating660 W
Wire Size14 to 10 AWG
Wiring TypeTop
