Boshart

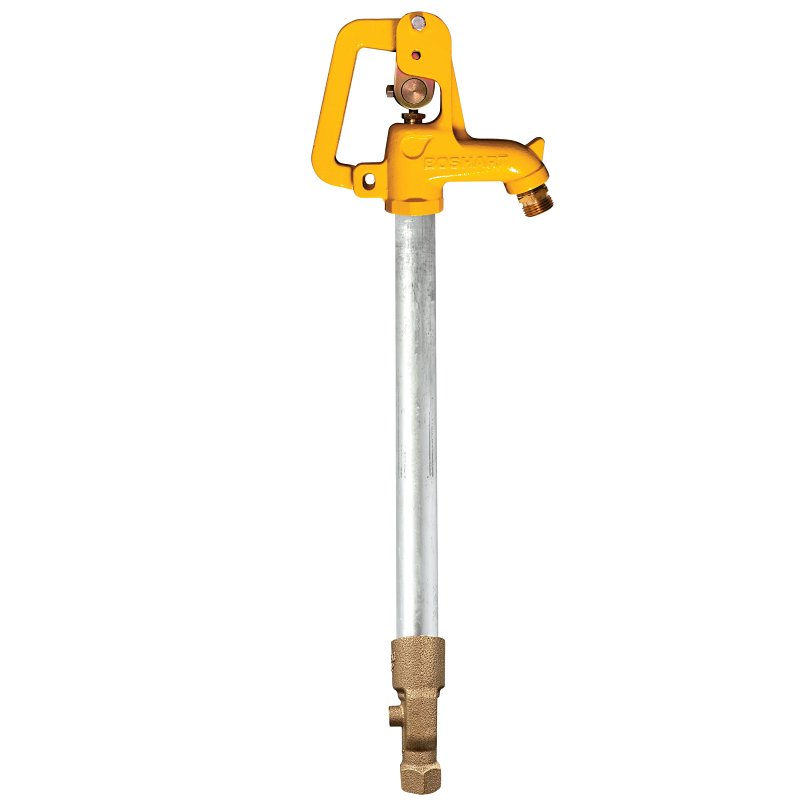

Boshart YHBR-06 Yard Hydrant, 105 in OAL, 3/4 in Inlet, FPT Inlet, 3/4 in Outlet, GHT Outlet, 52 gpm, 125 psi Pressure

  • Bury Depth: 6 ft
  • Flow Rate: 52 gpm
  • Handle Type: Comfort Grip
  • Head Material: Cast Iron
  • Inlet Connection Size: 3/4 in
  • Model #: YHBR-06
  • UPC #: 777808519484
  • SKU: 4622734

Your shopping list will be used for pickup in-store

Key Features

  • Large heavy-duty handle has longer hand grip for comfortable operation
  • The handle can be secured in any position to regulate flow using a stainless steel thumb bolt
  • Security lock feature allows for installation of a padlock to secure handle in the closed position
  • Polished operating rod reduces wear on the stem packing and provides maximum corrosion resistance
  • Double O-ring sealing system provides a positive seal between the hydrant head and operating rod
  • One-piece zinc-plated pivot connector complete with a square head set screw allows for easy adjustment of the linkage
  • Double zinc-plated draw straps provide excellent corrosion resistance and smooth operation, with very limited play in the linkage
  • Valve body offers great flow rates and a self-draining bleeder port prevents the riser pipe and valve head from freezing
  • A 7/8 in Dia self-lubricating plunger prolongs life expectancy and can be easily replaced from the surface - no digging required

Item Specifications

Bury Depth6 ft
Flow Rate52 gpm
Handle TypeComfort Grip
Head MaterialCast Iron
Inlet Connection Size3/4 in
Inlet Connection TypeFPT
Outlet Connection Size3/4 in
Outlet Connection TypeGHT
Overall Length105 in
Pressure Rating125 psi
Rod Diameter3/8 in
Rod MaterialStainless Steel
