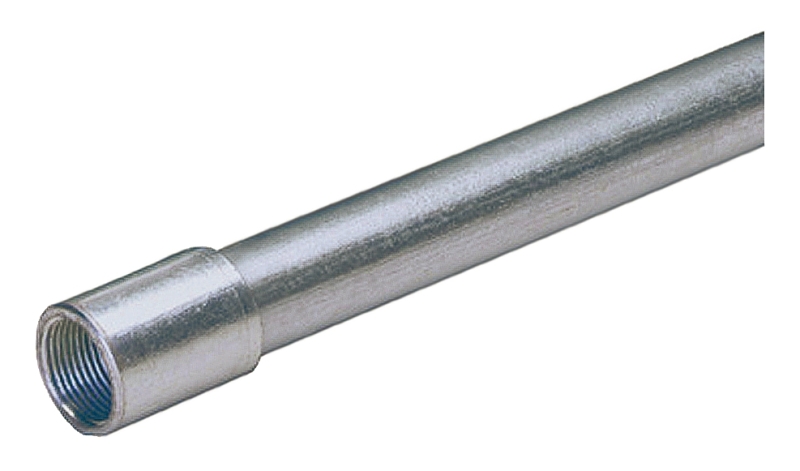

Columbia-MBF 734693 Conduit, 1 in, 10 ft L, Steel, Hot-Dip Galvanized

Columbia-MBF

Columbia-MBF 734693 Conduit, 1 in, 10 ft L, Steel, Hot-Dip Galvanized

Columbia-MBF 734693 Conduit, 1 in, 10 ft L, Steel, Hot-Dip Galvanized
  • Bend Angle: 90 deg
  • Connection Type: NPT
  • Finish: Hot-Dip Galvanized
  • Inside Diameter: 3/4 in
  • Length: 10
  • Model #: 734693
  • UPC #: 623905017029
  • SKU: 7328735

Your shopping list will be used for pickup in-store

Product Details

Manufactured from mild steel, Columbia-MBF's rigid conduit is highly resistant to damage from impact yet ductile to facilitate bending. The 3/4 in taper NPT threads (ANSI B1.20.1) are full cut and hot galvanized after cutting. Color-coded end cap thread protectors keep the threads clean, sharp and also provide instant trade size recognition. Even sizes are color-coded blue, 1/2 sizes black and 1/4 sizes red.

Key Features

  • Hot-dip galvanized for outstanding corrosion resistance
  • High-strength ductile steel for extended life and simple bending
  • Smooth, continuous raceways for rapid wire pulling
  • Kwik release end cap to protect threads
  • Columbia-MBF rigid steel conduit is top coated with a compatible organic layer to protect against white rust
  • The inside surface is evenly coated for ease in wire pulling, even through multiple 90 deg bends
  • Columbia-MBF rigid steel conduit is very effective in reducing the effects of electromagnetic field levels for encased power distribution circuits, shielding computers and other sensitive electronic equipment
  • Hot-dip galvanized inside and out to deliver galvanic corrosion protection
  • Columbia-MBF rigid conduit is precision manufactured for reliable, extended value and supreme protection for electrical conductors
  • Covered by section 12 of the Canadian Electrical Code (CEC), rigid steel conduit is highly resistant to damage from impact

Item Specifications

Bend Angle90 deg
Connection TypeNPT
FinishHot-Dip Galvanized
Inside Diameter3/4 in
Length10
MaterialSteel
Outside Diameter1.31 in
Trade Size1 in
TypeRigid
Wall Thickness0.12 in
