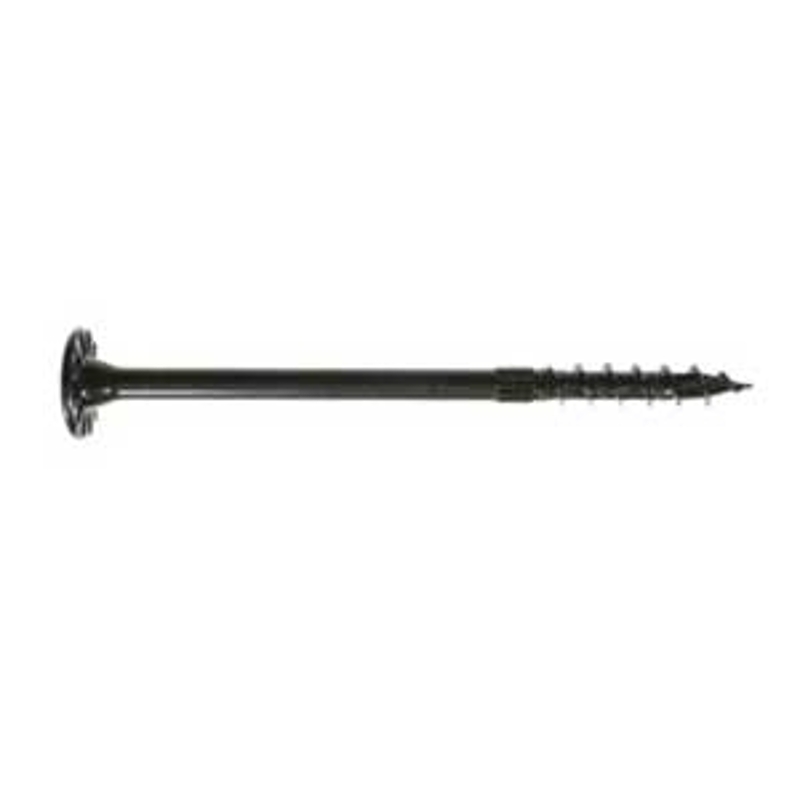

Simpson Strong-Tie Strong-Drive SDW Series SDW22300-R50 Truss-Ply Screw, T40 Drive, SawTooth Point

Simpson Strong-Tie

Applicable Materials: Wood
Drive Size: T40
Drive Type: 6-Lobe
Finish: E-coat Electrocoated
Head Type: Flat
Model #: SDW22300-R50
UPC #: 707392849605
SKU: 7083421

Your shopping list will be used for pickup in-store

Product Details

The Strong-Drive SDW truss-ply screw is a high-strength structural wood screw specifically designed for fastening multi-ply members, such as joining plated trusses and solid sawn lumber. The SDW installs easily with no predrilling and is available in optimized lengths for fastening 2-, 3- and 4-ply trusses. With the SDW truss-ply screw, multi-ply trusses and beams can be fastened from one side without requiring the lifting and flipping of heavy assemblies. It is code listed under IAPMO-UES ER-192 and meets 2012 and 2015 IRC® and IBC® code requirements for several common framing applications.

Key Features

Patented SawToothâ„¢ point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
Low-profile head results in less interference after installation, makes stacking and sliding members easier and allows installation of hardware and finishes to be virtually flush
Deep six-lobe T-40 recess reduces cam-out, making driving easier
Higher shear values than competitive products enable wider spacing, saving time and money
Bold thread design provides superior holding power and cinches fastened members together for consistent installation

Item Specifications

Applicable Materials	Wood
Drive Size	T40
Drive Type	6-Lobe
Finish	E-coat Electrocoated
Head Type	Flat

Length	2-15/16
Length Under Head	3
Material	Carbon Steel
Point Type	SawTooth
Thread Length	1-7/16

MORE DETAILS:

Application: For truss-ply fastening
