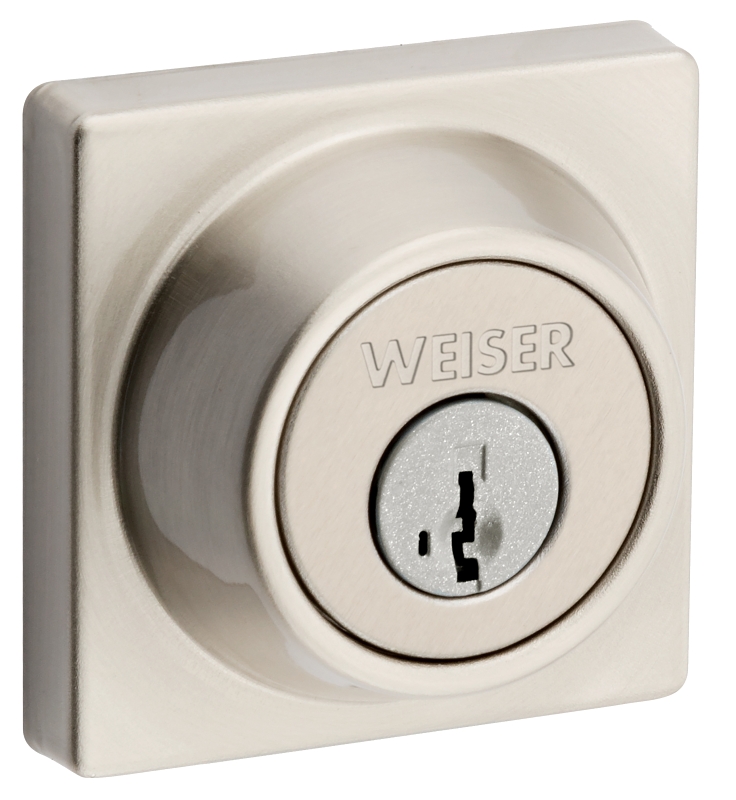

Weiser Elements Series 9GDC94710-062 Deadbolt, Grade 3 Grade, Keyed Key, Satin Nickel, 2-3/8, 2-3/4 in Backset

Weiser

Weiser Elements Series 9GDC94710-062 Deadbolt, Grade 3 Grade, Keyed Key, Satin Nickel, 2-3/8, 2-3/4 in Backset

$39.05$39.05
Weiser Elements Series 9GDC94710-062 Deadbolt, Grade 3 Grade, Keyed Key, Satin Nickel, 2-3/8, 2-3/4 in Backset
  • Backset Size: 2-3/8 2-3/4 in
  • Backset Type: Adjustable
  • Commercial/Residential: Residential
  • Cross Bore Diameter: 2-1/8 in
  • Cylinder Type: 5-Pin
  • Model #: 9GDC94710-062
  • UPC #: 059184413267
  • SKU: 5173976

Your shopping list will be used for pickup in-store

Product Details

Elements by Weiser® provides an expanded choice styles and finishes at an affordable price. This single cylinder deadbolt can be locked or unlocked by a key on the outside or the turn piece on the inside. The crisp, clean appearance of the satin nickel finish adds to the overall look of the product and brings a modern feel.

Key Features

  • Featuring SmartKey® re-key technology, re-key the lock yourself in seconds in three easy steps
  • Features an adjustable latch to fit all standard door preparations
  • Locking mechanism functions with turn piece on the interior of the lock
  • Easily installs in minutes with just a screwdriver

Item Specifications

Backset Size2-3/8 2-3/4 in
Backset TypeAdjustable
Commercial/ResidentialResidential
Cross Bore Diameter2-1/8 in
Cylinder Type5-Pin
DesignContemporary
Dimensions2-1/2 in H
Door HandingUniversal
Door Thickness1-3/8 to 1-3/4 in
Edge Bore Diameter1 in
Faceplate Size1 x 2-1/4 in
FinishSatin Nickel
Includes(2) Keys
Interior LockingTurn Piece
Key TypeKeyed
Keyway TypeKW1
Latch Type4-Way Adjustable
Number of Cylinders1
Projection Size1-1/8 in
Re-Key TechnologySmartKey
Security GradeGrade 3
Strike Size1-1/8 x 2-3/4 in
Strike TypeRound Corner Square Corner
Throw Length1 in
TypeMechanical Square
MORE DETAILS:
  • Application: For use on exterior doors where keyed entry and security is needed
  • Warranty: Lifetime
