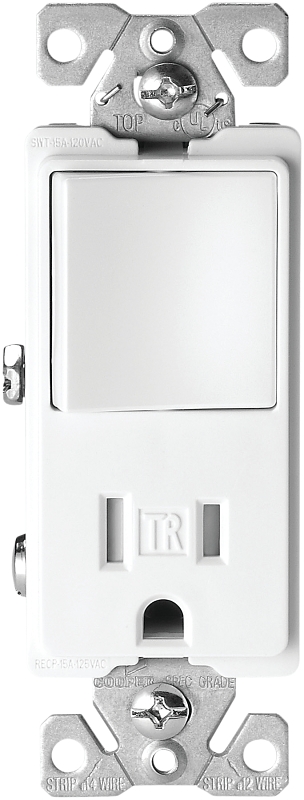

COOPER INDUSTRIES TR7730W Decorator Tamper Resistant Combination Switch/Receptacle, 4.19 in L x 1.3 in W x 1.08 in D

EATON WIRING DEVICES

COOPER INDUSTRIES TR7730W Decorator Tamper Resistant Combination Switch/Receptacle, 4.19 in L x 1.3 in W x 1.08 in D

COOPER INDUSTRIES TR7730W Decorator Tamper Resistant Combination Switch/Receptacle, 4.19 in L x 1.3 in W x 1.08 in D
  • Enclosure Rating: NEMA 5-15R
  • Finish: Zinc Plated
  • Grounding Style: Ungrounded
  • Material: Thermoplastic
  • Mounting Type: Threaded
  • Model #: TR7730W-SP-L
  • UPC #: 032664750281
  • SKU: 9235714

Your shopping list will be used for pickup in-store

Product Details

Shutter designed to prevent the insertion of foreign objects. Switch is horsepower rated for motor loads per UL 20. Thermoplastic toggle, top and backbody. Ultrasonic welding and integrated construction of the strap and body. Tri-combo screw heads. Backwire clamps on side terminals for installation of #12 and #14 AWG wire. 15 amp 120V/AC switch, 15 amp 125V/AC TR receptacle. UL listed.

Key Features

  • Steel mounting strap is zinc plated for added corrosion-resistance
  • Convenient patented built-in wire stripper speeds installation
  • Backwire clamps on side terminals provide for easy installation of no 12 and no 14 awg wire
  • Terminal screws are backed out and ready for wiring to enhance ease of installation
  • Break-off provision for wiring both devices on the same circuit or on separate circuits
  • Triple wipe blade contacts and double wipe ground contacts ensure long term plug retention on receptacles
  • Automatic grounding system eliminates the need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where a jumper is used
  • Back and side wire method

Item Specifications

Enclosure RatingNEMA 5-15R
FinishZinc Plated
Grounding StyleUngrounded
MaterialThermoplastic
Mounting TypeThreaded
Number of Poles2 (Receptacle), 1 (Switch)
Number Of Wires3
Overall Depth1.08 in
Overall Length4.19
Overall Width1.3
Receptacle Amperage Rating15 A
Receptacle Voltage Rating125 VAC
SeriesTR7730
StandardscULus Listed to UL20/UL498, E18704, NOM Certified
Switch Amperage Rating15 A
Switch Voltage Rating125/277 V
Terminal TypeScrew
TypeDecorator, Tamper Resistant
Wire Size12 - 14
