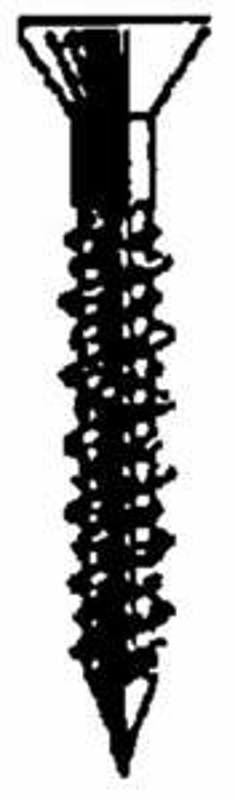

Tapcon 3130 Concrete Screw Anchor, 3/16 in Dia, 2-1/4 in L, Stainless Steel, Climaseal, 100/BX

Tapcon

Tapcon 3130 Concrete Screw Anchor, 3/16 in Dia, 2-1/4 in L, Stainless Steel, Climaseal, 100/BX

Tapcon 3130 Concrete Screw Anchor, 3/16 in Dia, 2-1/4 in L, Stainless Steel, Climaseal, 100/BX
  • Color: Blue
  • Diameter: 3/16 in
  • Drill Size: 5/32 x 4-1/2 in
  • Finish: Climaseal
  • Fixture Thickness: 1/2 to 1-1/4 in
  • Model #: 3130
  • UPC #: 774463313006
  • SKU: 6419287

Your shopping list will be used for pickup in-store

Product Details

The original masonry anchor that cuts its own threads into concrete, brick or block. Maximum performance is achieved because the Tapcon® anchor, the condrive installation tool and the carbide-tipped Tapcon® drill bits are designed to work as a system. It is essential to use the condrive tool and the correct drill bit to assure consistent anchor performance.

Key Features

  • Fast installation, just drill a hole and drive an anchor
  • Replaces small diameter expansion anchors, plugs and screws in light to medium duty applications
  • No need to pre-spot holes and no inserts are required
  • Reversible and removable, can be installed close to an edge
  • Compatible for use in ACQ treated wood
  • 3/16 in Dia uses a #2 Phillips flat head (PFH)
  • Climasealâ„¢ coating is standard on all Tapcon anchors to provide extended corrosion resistance
  • Advanced Threadform Technology® cuts into masonry materials for greater pullout values
  • Nail-type point guides the anchor into the pre-drilled hole and excellent for wood to concrete applications
  • Phillips flat head style is available when flush seating is necessary in countersink applications

Item Specifications

ColorBlue
Diameter3/16 in
Drill Size5/32 x 4-1/2 in
FinishClimaseal
Fixture Thickness1/2 to 1-1/4 in
Head TypeFlat Phillips
Length2-1/4
MaterialStainless Steel
Minimum Embedment Depth1 in
Shear Strength400 to 730 lb
Tensile Strength220 to 340 lb
MORE DETAILS:
  • Application: For securing electrical junction boxes, conduit clips, exterior insulation systems, HVAC strapping, plywood backer boards, wood headers, furring strips to masonry
